Applicable standards (only some standards are shown)

1. GBT 30385-2013 Spices and condiments - Determination of volatile oil content

2. "Chinese Pharmacopoeia" Part IV Determination of Volatile Oil

3. Water content determination method in Part III/IV of the Chinese Pharmacopoeia (toluene method)

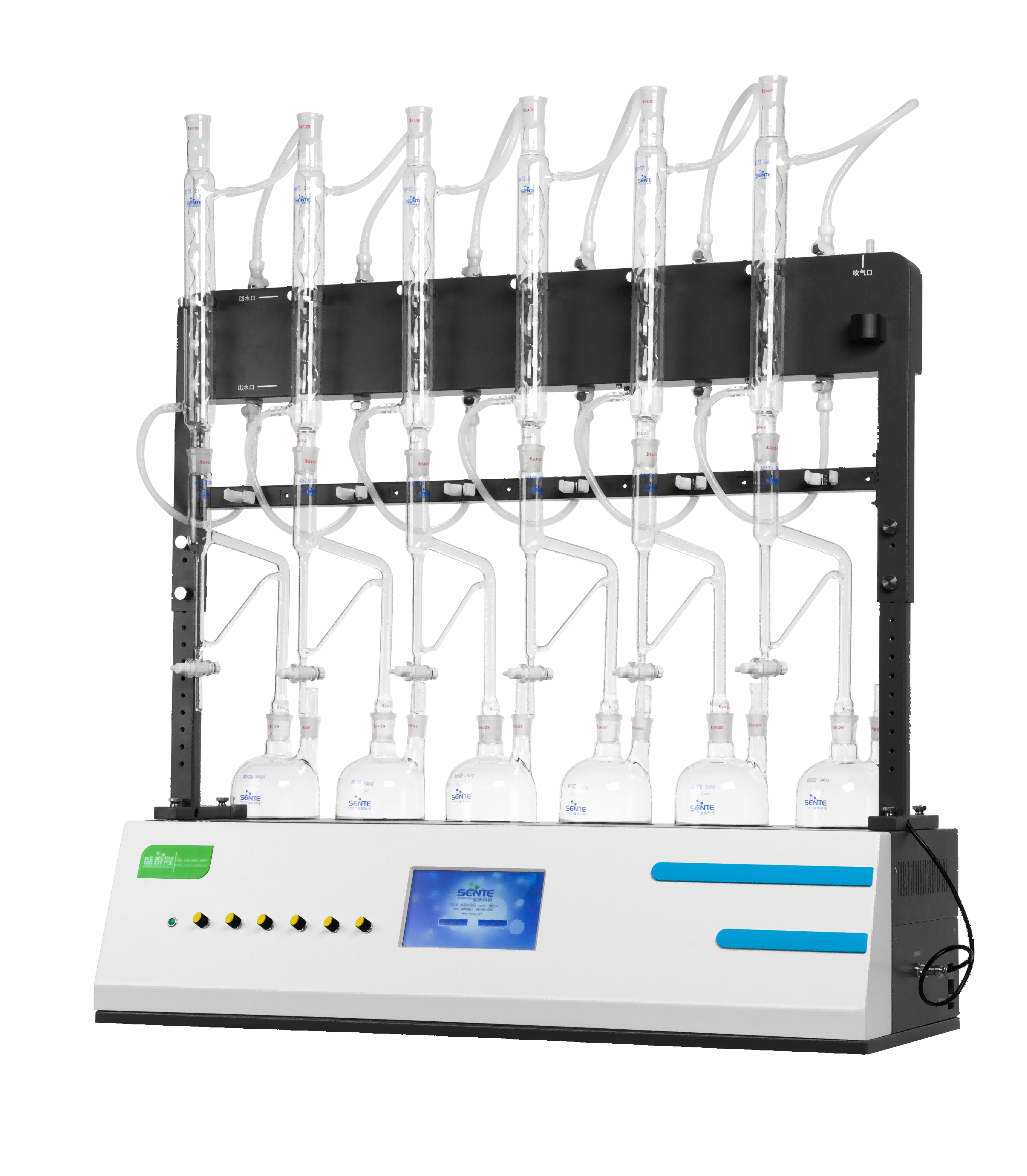

Features

1. Adopt far-infrared ceramic heating, which heats evenly and has good stability;

2. Adopt 7-inch color LCD touch screen control system, easy to operate;

3. 1-6 groups of samples can be made at one time, and each channel can be controlled independently;

4. It is equipped with micro-boiling and full-boiling control modes, which can control the heating rate according to different sample boiling points to ensure the stability of the distillation experiment;

5. The water in the condenser pipe is automatically blown back to the chiller to inhibit the growth of bacteria and keep the condenser pipe clean;

6. 6 independent heating and mixing functions, the speed can be independently controlled to ensure sufficient digestion, prevent the sample from adhering to the bottom of the flask, making it difficult to clean, and prevent the bottom from becoming sticky.

7. Condensation bracket adjustment: The condenser bracket can be adjusted front and back, up and down, suitable for different glass devices.

8. Installation method of condenser: The circulating water outlet of the condenser adopts a quick-insert structure, which can be disassembled when there is water, will not leak, and is convenient for cleaning the condenser.

 Technical parameters :

Heating method: far-infrared ceramic radiation heating;

Operation interface: 7-inch LCD touch screen control, easy to operate;

Heating unit: 1-6 samples can be processed at one time, and each unit can be controlled independently;

Gradient temperature control: Each unit can realize gradient program temperature control, and the process is stable without the need for personnel on duty;

Refrigeration cycle system: standard water chiller, continuous refrigeration, no need for external tap water, and easy maintenance;

Automatic emptying: Condensate is automatically blown back to the chiller to inhibit bacterial growth and keep the condensation pipe clean;

Flask capacity: 1000ml round bottom flask;

Temperature control mode: PID power control 0-500w;

Overall dimensions ( mm): 890 × 380 × 830 ;

Rated power: 3000W;

Rated voltage: 220V/50HZ.
